Servo Box
Servo Box systems act as a central interface between the autopilot and mechanical subsystems of the aircraft. They manage signal conditioning and monitoring for servomechanisms and connected flight-critical components. Each Servo Box is developed and manufactured as a custom solution based on the aircraft architecture and system requirements.
Functions
Servo Box functionality is defined by the system and required level of control, monitoring and redundancy. Typical implementations include:
Centralized power distribution and backup for servomechanisms and flight control systems
Signal conditioning and amplification between autopilot and servo actuators
Individual servo power consumption monitoring with fault detection
Current monitoring of each power supply branch
High-voltage switching channels for subsystems
Export of operational and diagnostic data
Functions
Servo Box functionality is defined by the system and required level of control, monitoring and redundancy. Typical implementations include:
Centralized power distribution and backup for servomechanisms and flight control systems
Signal conditioning and amplification between autopilot and servo actuators
Individual servo power consumption monitoring with fault detection
Current monitoring of each power supply branch
High-voltage switching channels for subsystems
Export of operational and diagnostic data

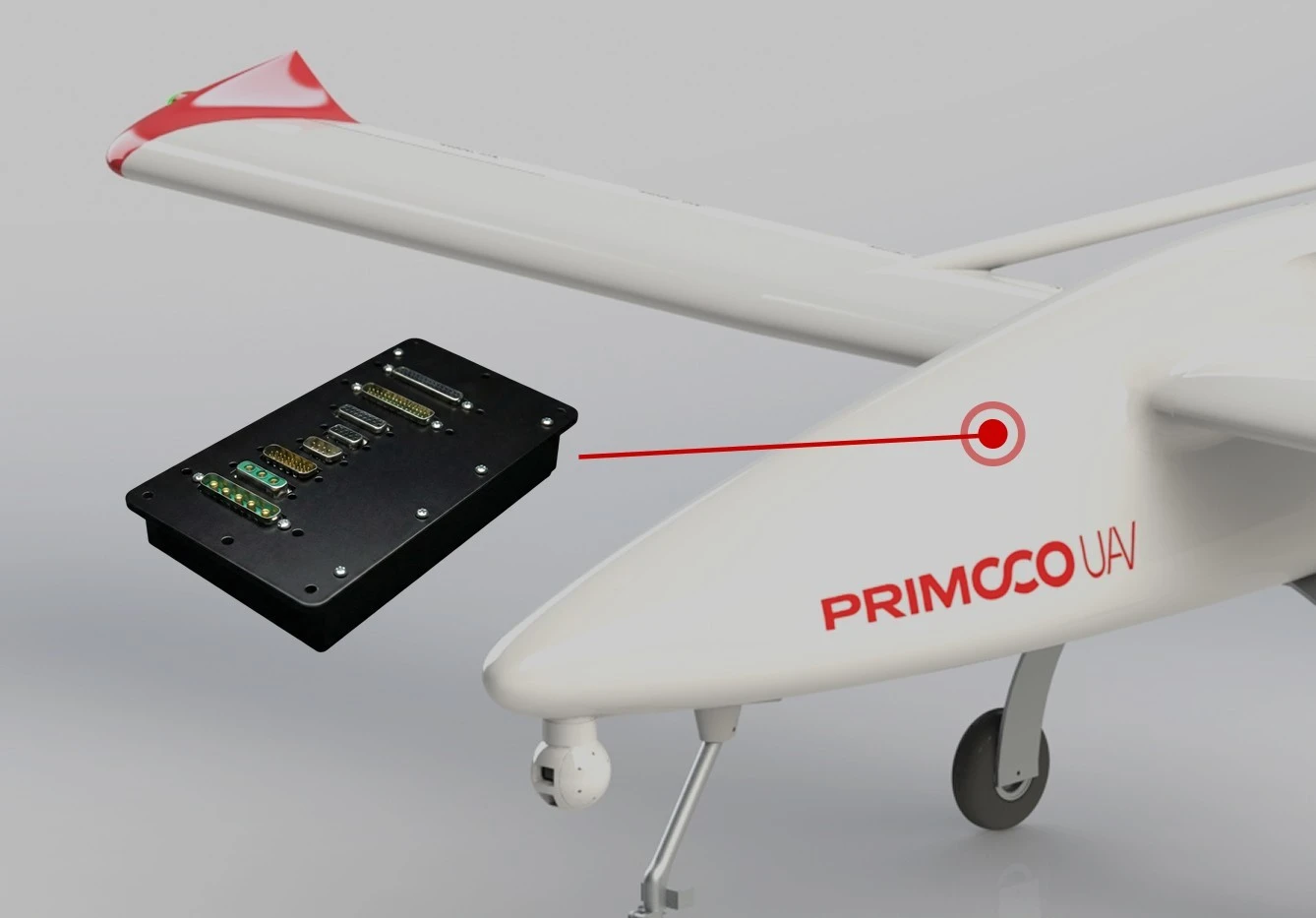

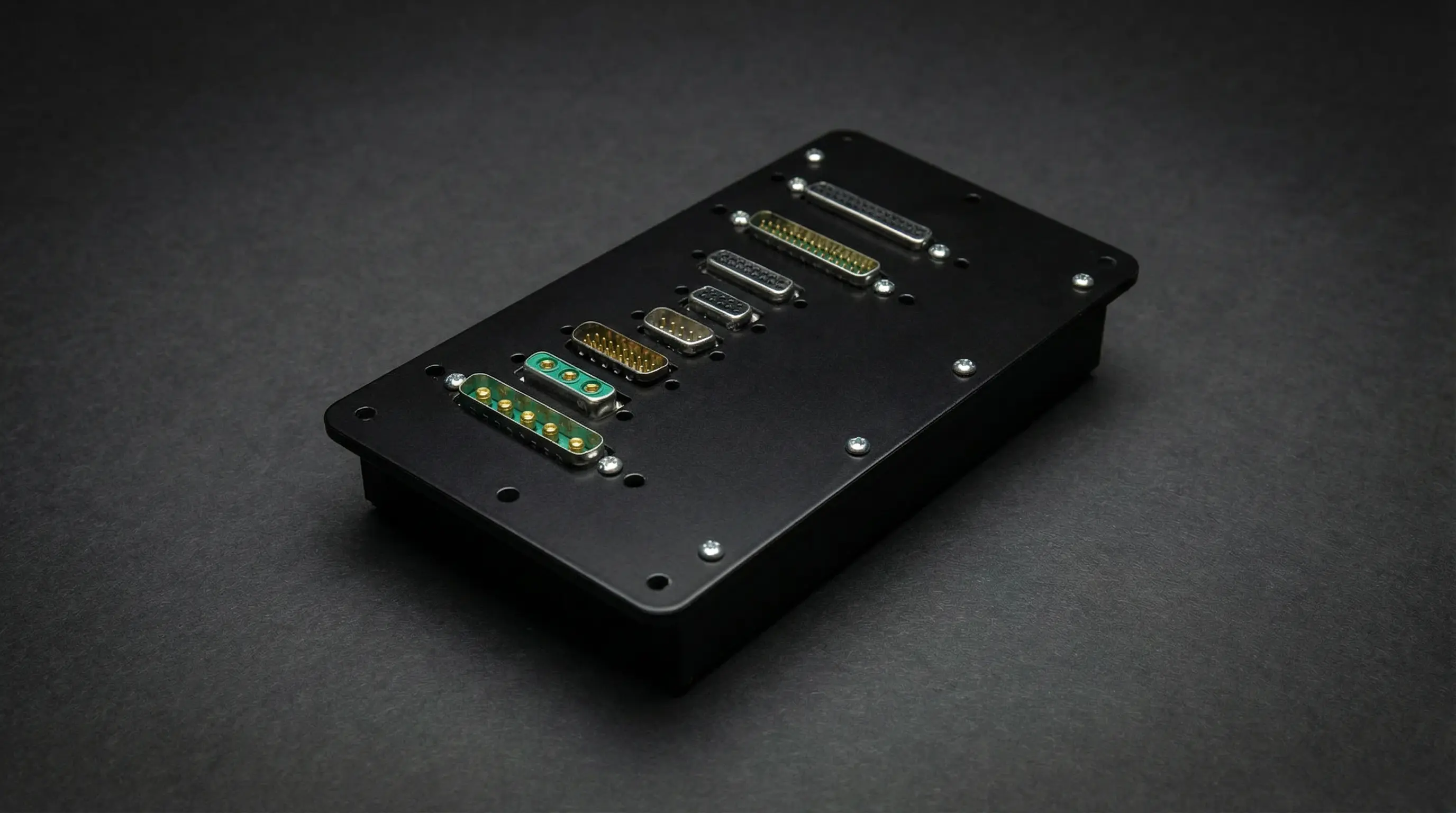

Servo Box for Primoco One 150 & One 100.
We have developed and manufactured Servo Box systems for the leading European company in modern UAV systems - Primoco UAV.
System Specifications:
autopilot outside of servobox
power supply input 14 + 28 VDC
servomotor power supply output 7,4 VDC
servomotor output 16x
power switch 4x
PWM brake switch 1x
servo signal amplifier 20x
complete voltage and current measurement
telemetry data export
Servo Box for Primoco One 150 & One 100.
We have developed and manufactured Servo Box systems for the leading European company in modern UAV systems - Primoco UAV.
System Specifications:
autopilot outside of servobox
power supply input 14 + 28 VDC
servomotor power supply output 7,4 VDC
servomotor output 16x
power switch 4x
PWM brake switch 1x
servo signal amplifier 20x
complete voltage and current measurement
telemetry data export

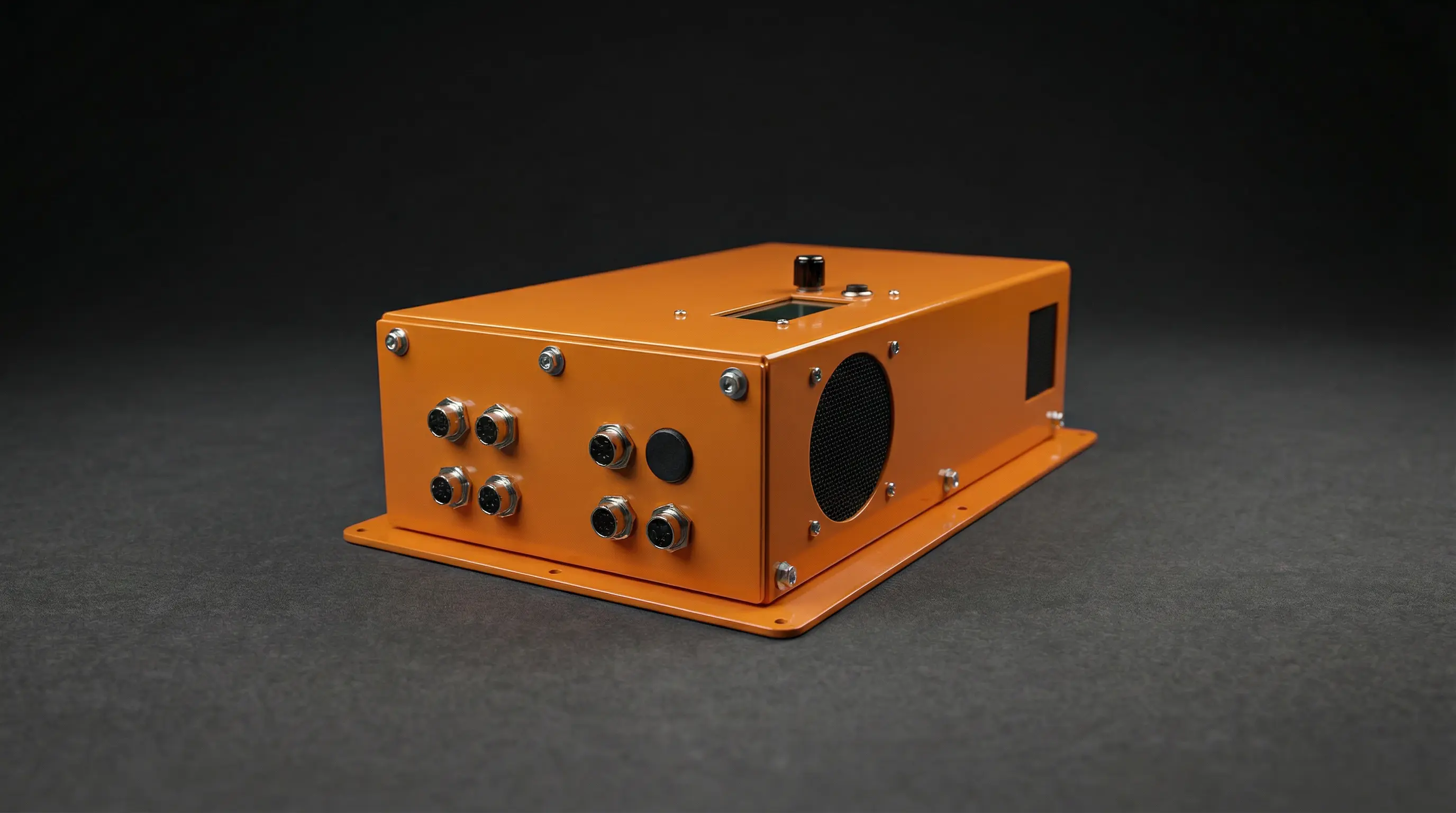

Servo Box for UAV Atlas.
Complete development of Servo Box system for company UAVSystems and their UAV Atlas plane.
System Specifications:
autopilot inside of servobox
power supply input input 14 + 28 VDC
servomotor output, fuse and current identification 16x
power switch, fuse and current identification 4x
PWM brake switch, fuse and power identification 1x
actuator control, fuse and power identification 3x
ethernet inputs 7x
data inputs and outputs ( UART, RS485, CAN) 7x
ADC inputs 9x
telemetry data export
integrated control display
Servo Box for UAV Atlas.
Complete development of Servo Box system for company UAVSystems and their UAV Atlas plane.
System Specifications:
autopilot inside of servobox
power supply input input 14 + 28 VDC
servomotor output, fuse and current identification 16x
power switch, fuse and current identification 4x
PWM brake switch, fuse and power identification 1x
actuator control, fuse and power identification 3x
ethernet inputs 7x
data inputs and outputs ( UART, RS485, CAN) 7x
ADC inputs 9x
telemetry data export
integrated control display
