Sensors
Sensors for precise measurement of temperature, pressure, fuel level and fuel flow in aviation. Our sensors are designed for integration with Fly Henry engine management systems, PPG Meter and FLY Meter, ensuring reliable data acquisition in continuous operation. Each sensor can be mechanically and electrically adapted to the specific installation requirements.

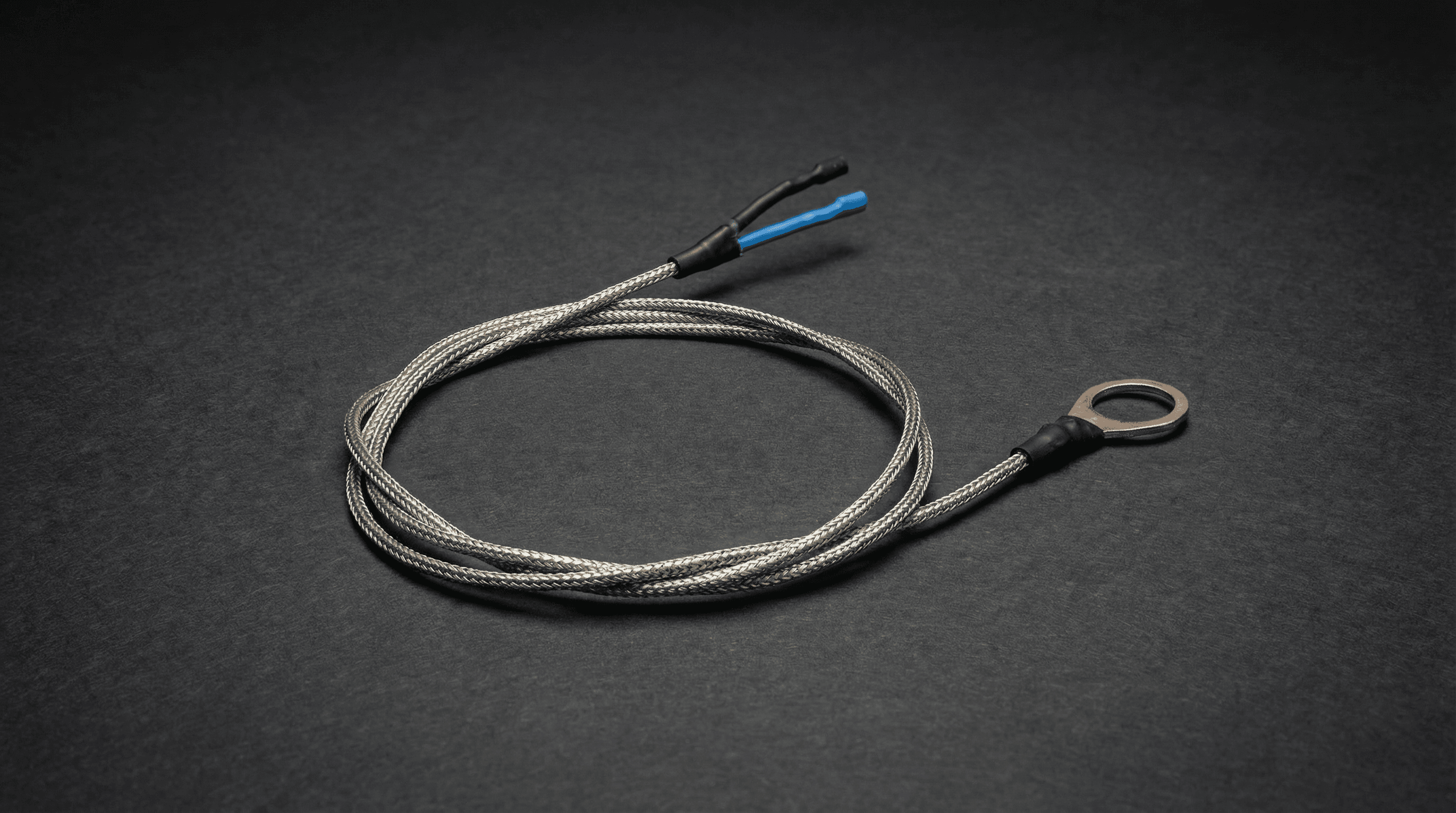

CHT Sensor
CHT sensor for measuring cylinder head temperature in combustion engines.
Standard cable length: 50 or 80 cm (Ø10 mm, Ø14 mm)
Cable length can be adjusted according to customer requirements

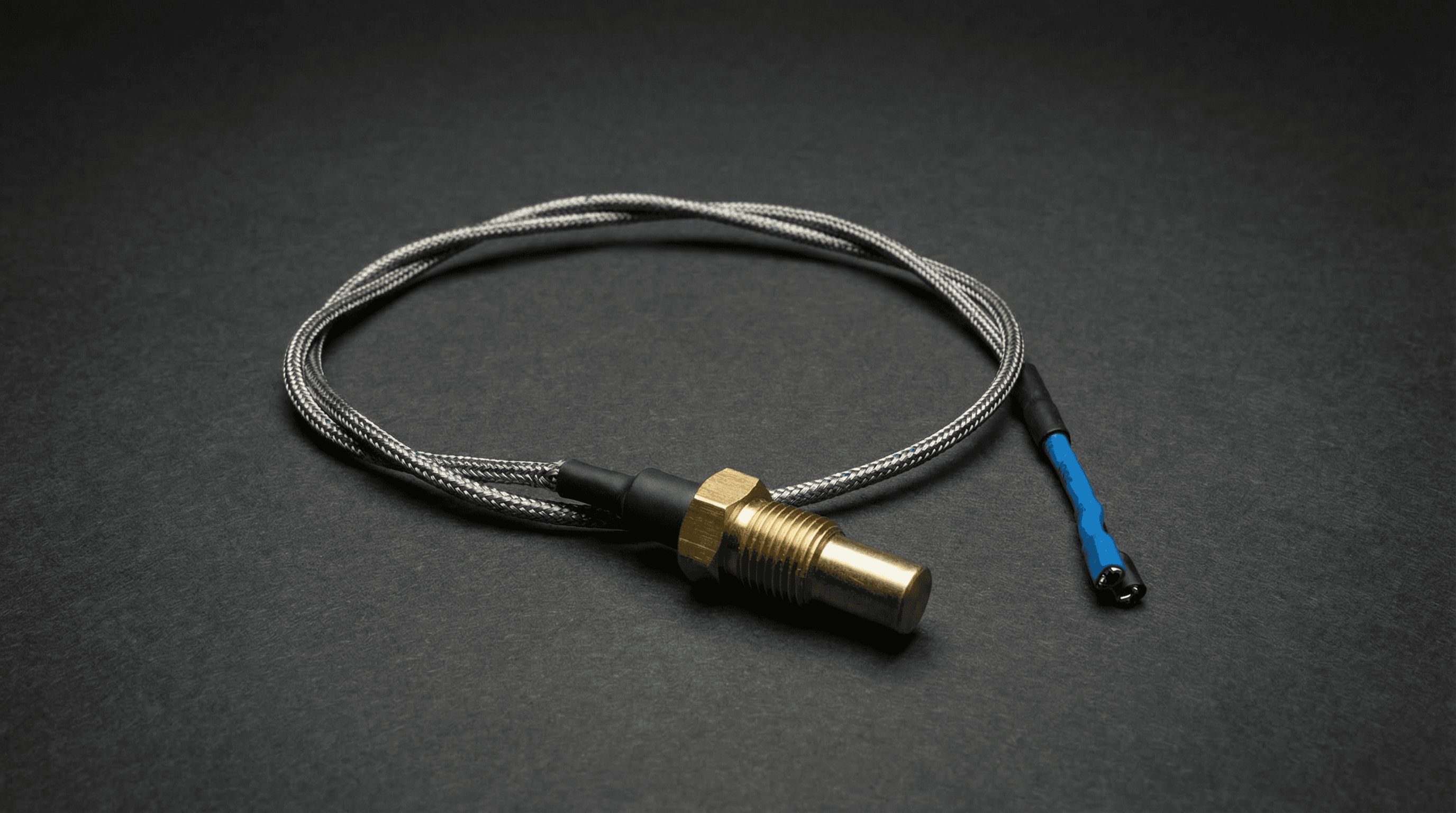

Water Sensor
Water temperature sensor for cooling system monitoring.
Standard cable length: 50 or 80 cm, customizable
Available threads: M6, M8, M10 × 1 mm

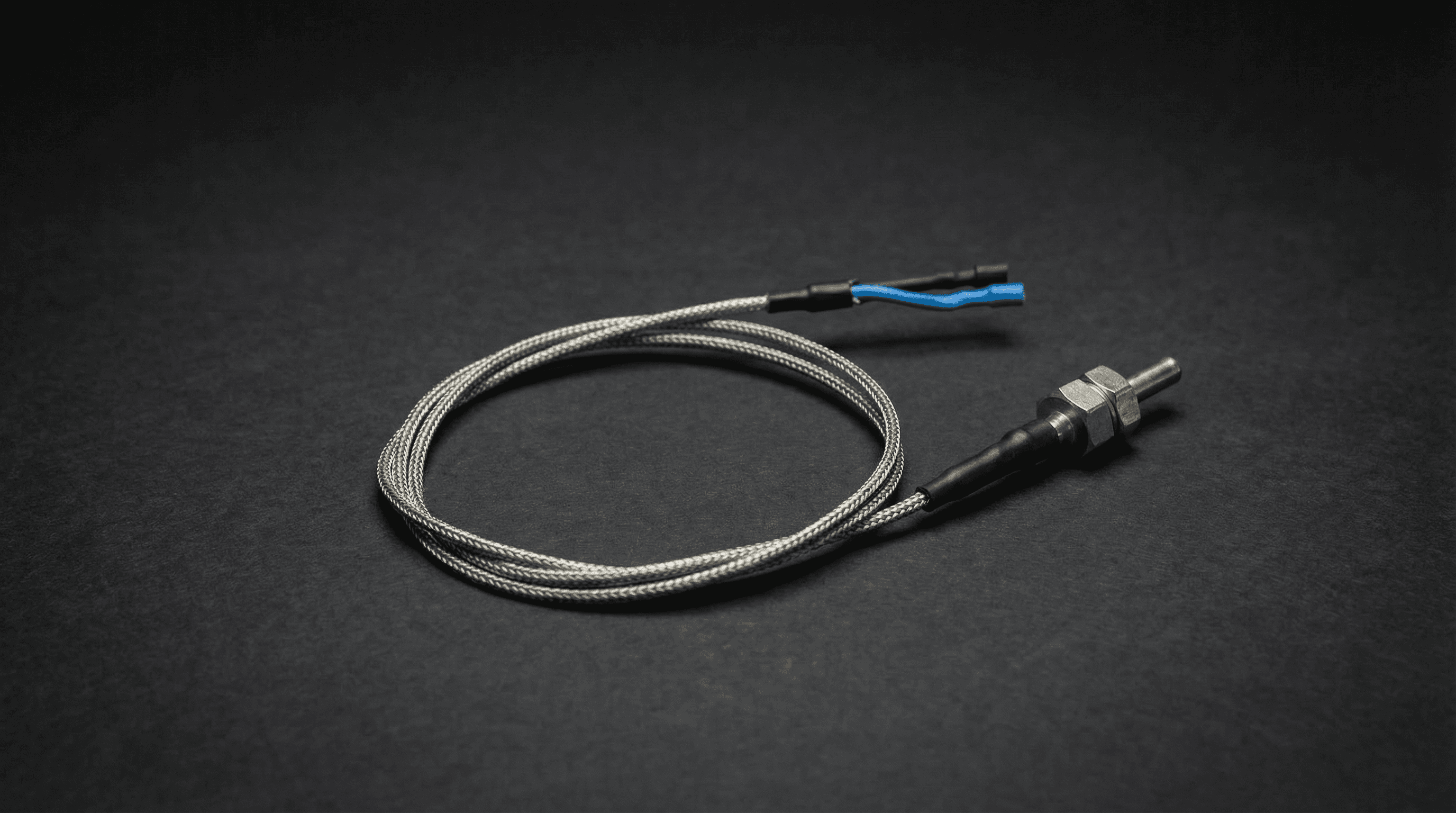

EGT Sensor
EGT sensor for exhaust gas temperature measurement.
Available threads: M8 × 1 mm, M6 × 1 mm
Standard cable length: 50 or 80 cm, customizable

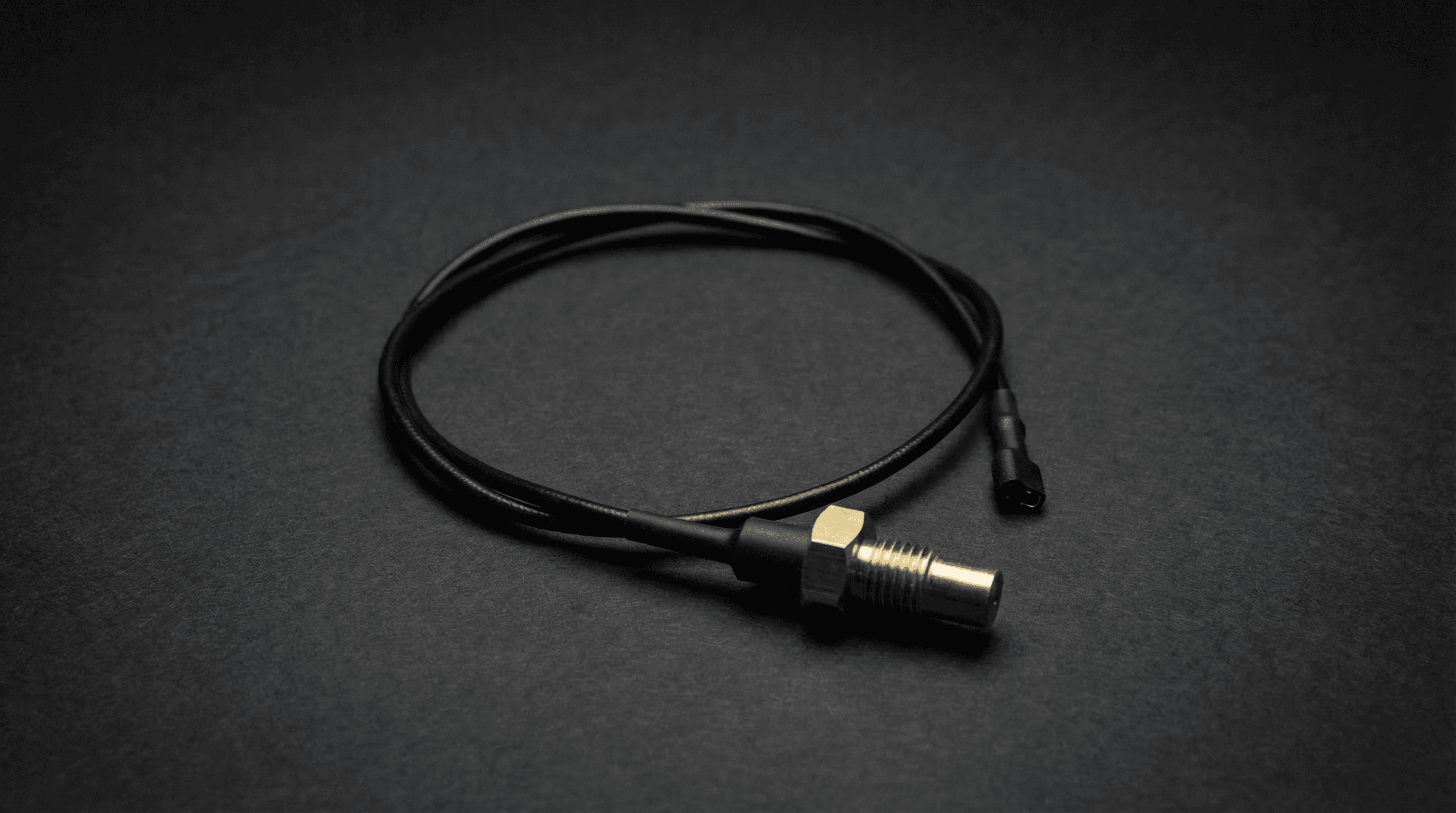

Temperature Sensor - for coolant and oil
Temperature sensor for oil and coolant measurement.
Threads: M6, M8, M10 × 1 mm
Designed for use with FLY Meter

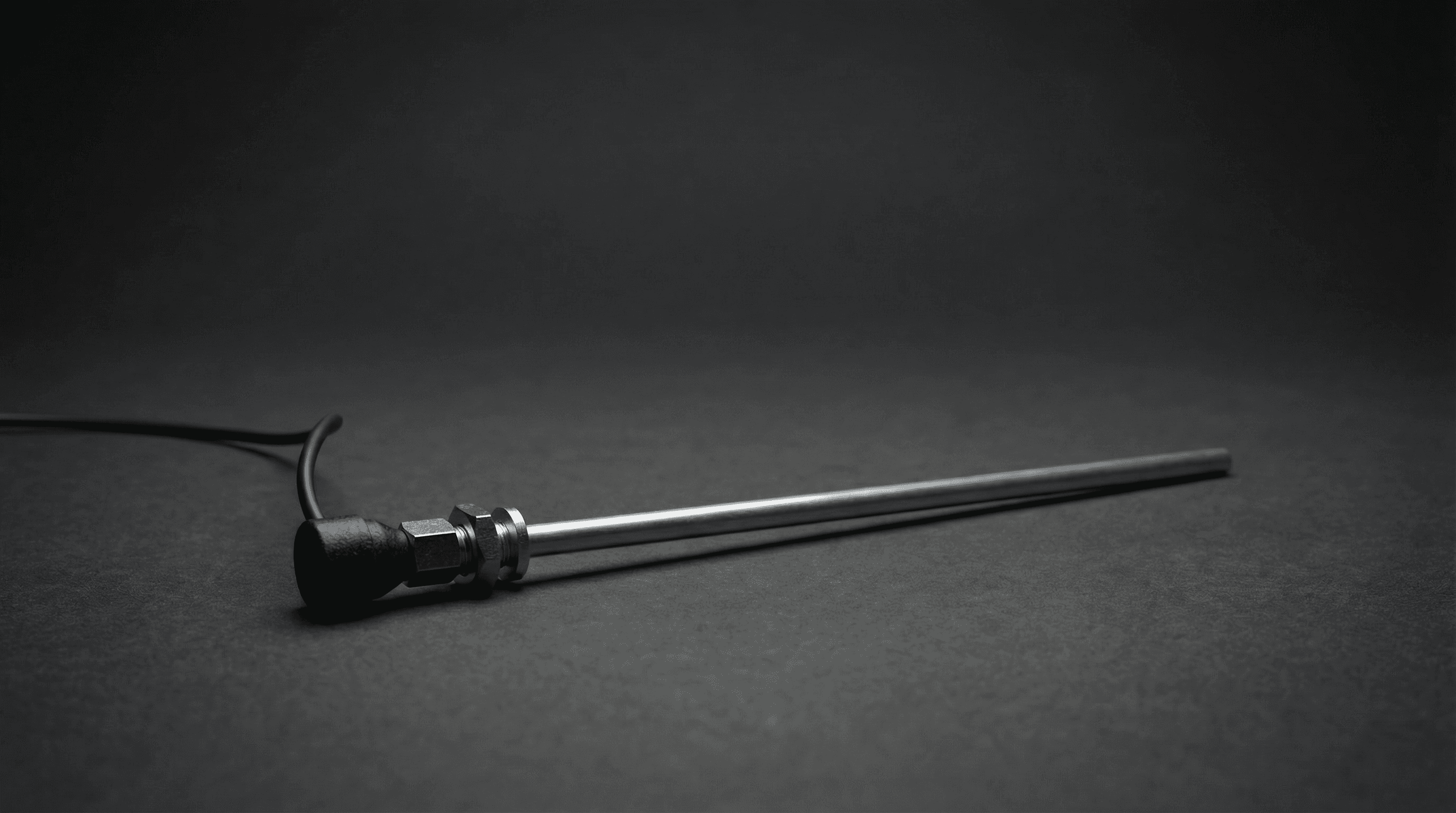

Fuel Level Sensor
Fuel level sensor for continuous measurement of fuel quantity in the tank.
Standard cable length: 29 or 45 cm
Length can be adjusted according to tank height
Adjustment procedure described in documentation

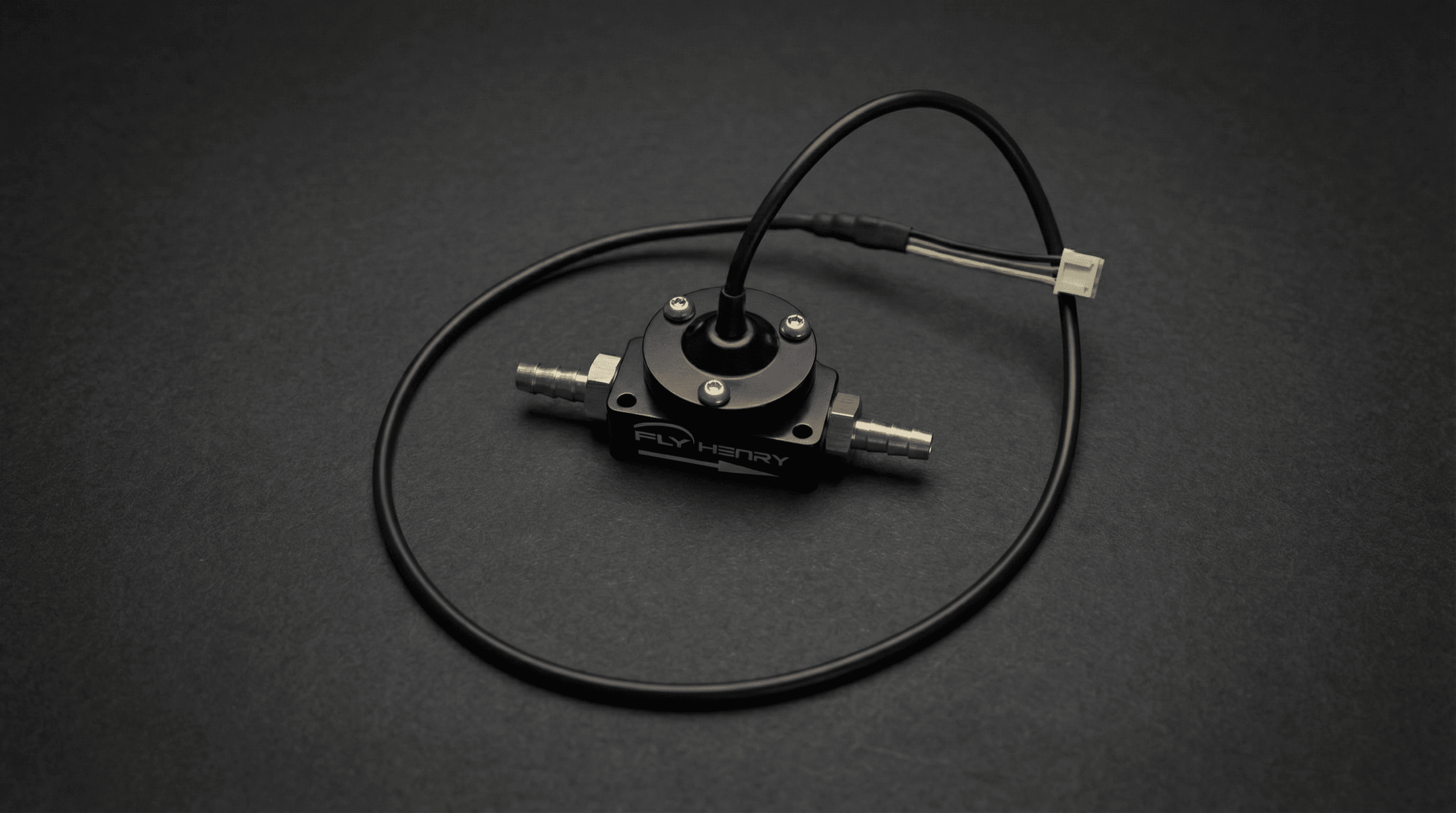

Fuel Flow Sensor
Fuel flow sensor for real-time fuel consumption measurement.
Measurement range: 0.5 – 25 liters per hour
Setting parameter is: 23000imp/l.
Hosepipe
One pair of hosepipe is in the price of a sensor.
You can choose between: 5mm, 6mm, 7mm

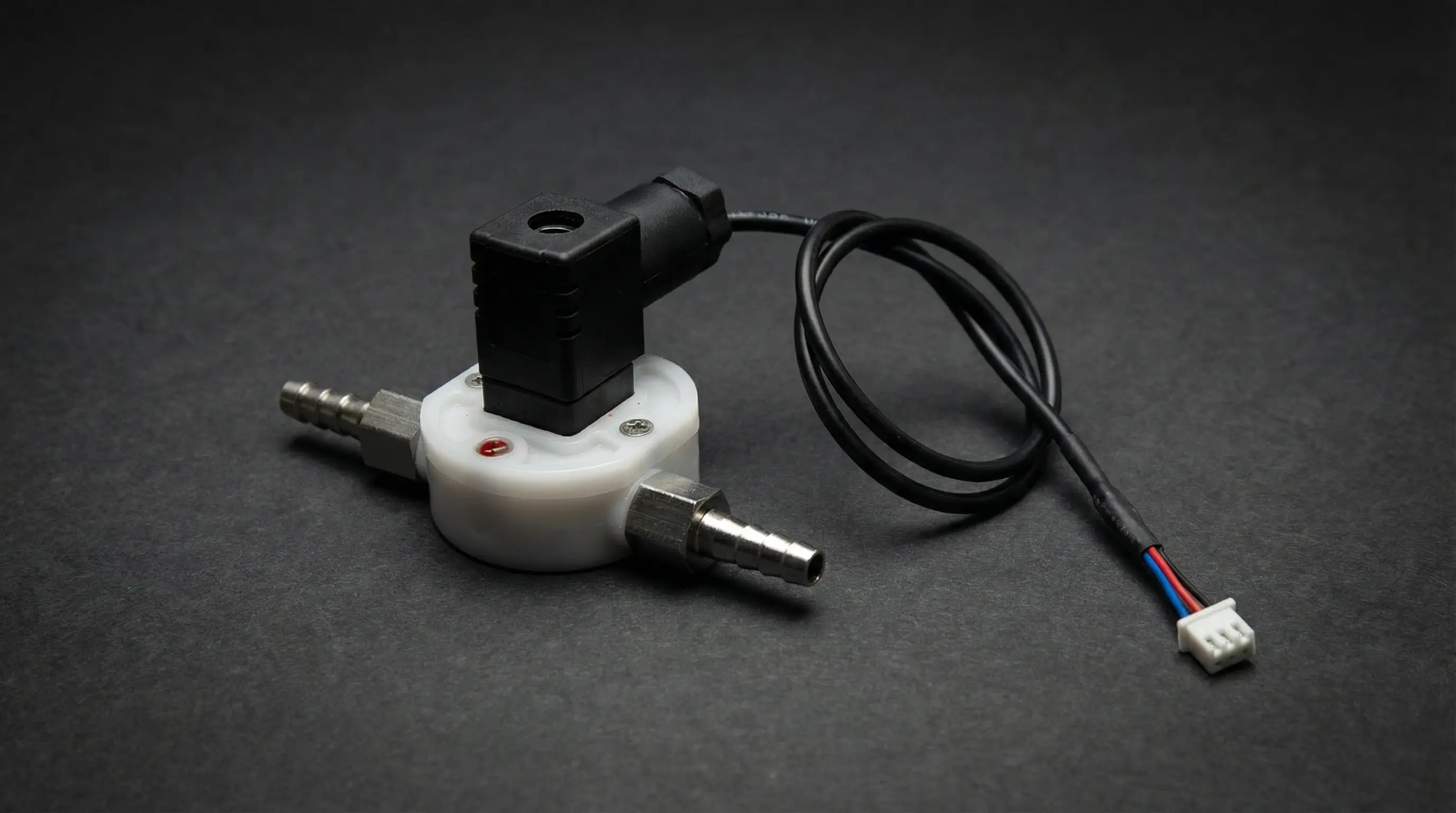

Fuel Flow Sensor
Fuel flow sensor for real-time fuel consumption measurement.
Measurement range: 0.03 - 2 liters per minute

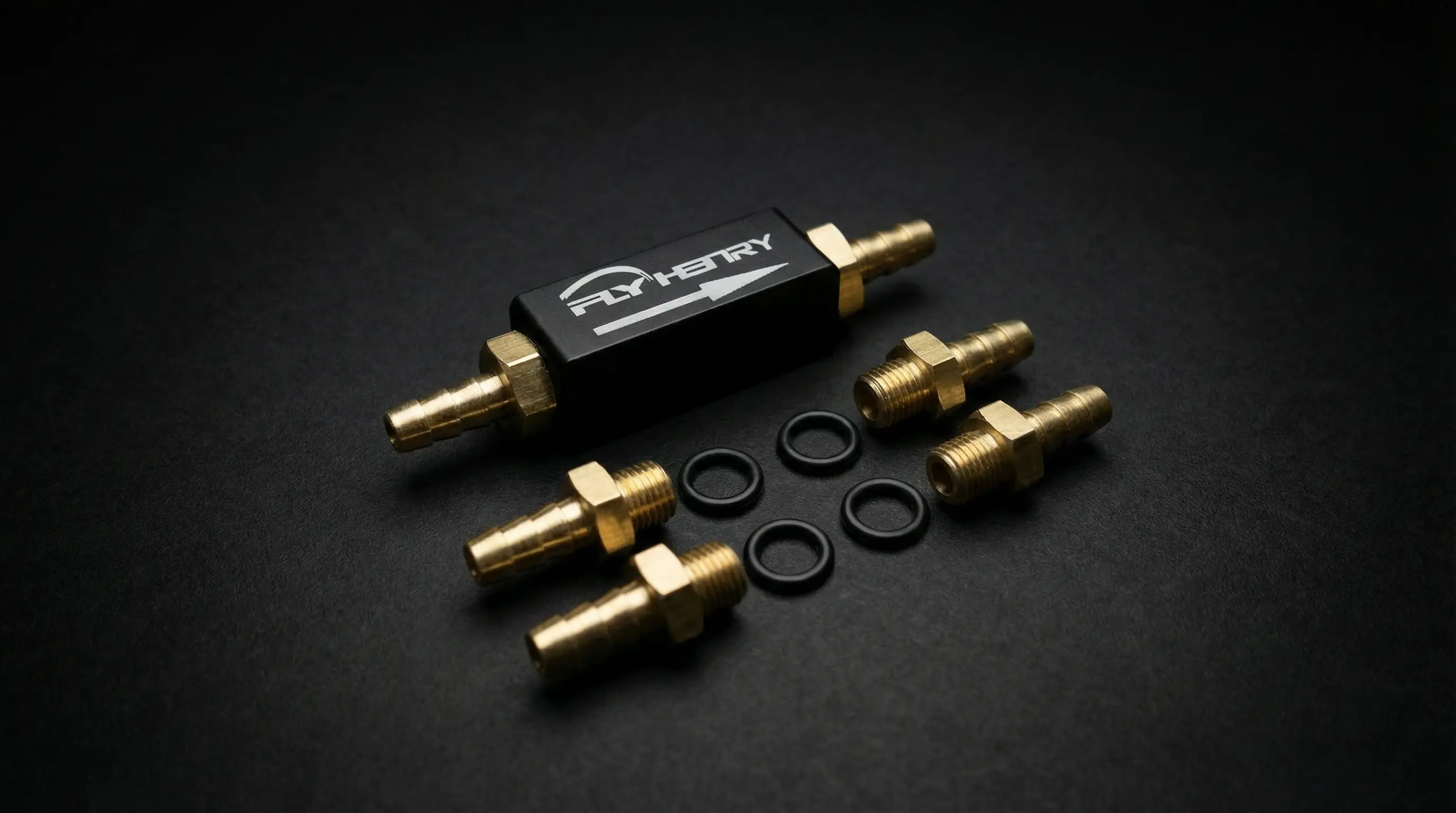

Oil and Fuel pressure sensor
One pair of hosepipe is in the price of a sensor.
You can choose between: 5mm, 6mm, 7mm
