PPG Meter
A monitoring device for powered paragliding systems used to display key engine parameters and flight-related data, helping pilots keep track of essential operating information during flight.
System architecture

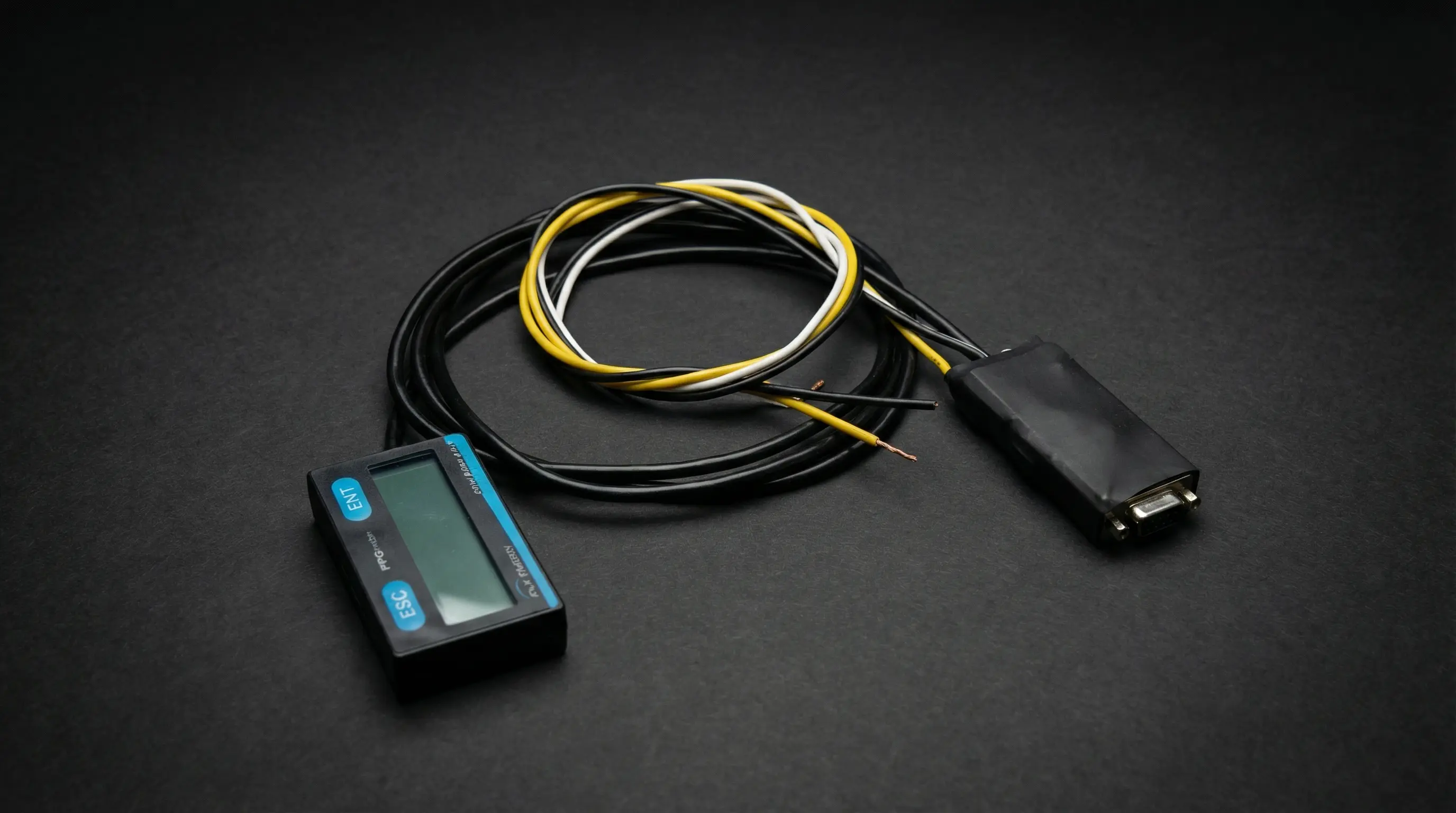

The system is split into two modules: a measurement unit installed near the engine and a display unit positioned in the pilot’s field of view. All sensors connect to the measurement unit; the display provides live operating data during flight. The modules are connected via a 130 cm data cable.
System architecture
The system is split into two modules: a measurement unit installed near the engine and a display unit positioned in the pilot’s field of view. All sensors connect to the measurement unit; the display provides live operating data during flight. The modules are connected via a 130 cm data cable.
Detailed functions, specifications and diagrams are available in our documentation.
Detailed functions, specifications and diagrams are available in our documentation.
Detailed functions, specifications and diagrams are available in our documentation.
Functions
Engine & System Monitoring
2× temperature measurement (0–1000°C), CHT or EGT
Temperature display in °C or °F
RPM measurement
On-board voltage measurement
Display brightness and contrast adjustment
Fuel Management
Fuel level measurement in the tank (liters or gallons)
Fuel consumption tracking: immediate and average consumption
Total consumed fuel tracking (liters or gallons)
Flight time calculation according to fuel level
Timers & Limits
4× engine hours tracking (moto hours)
Total timer with initial time setting option
Total timer lock via code (code block)
Maximum limits for temperature, RPM and fuel consumption
Reset of all timers
Functions
Engine & System Monitoring
2× temperature measurement (0–1000°C), CHT or EGT
Temperature display in °C or °F
RPM measurement
On-board voltage measurement
Display brightness and contrast adjustment
Fuel Management
Fuel level measurement in the tank (liters or gallons)
Fuel consumption tracking: immediate and average consumption
Total consumed fuel tracking (liters or gallons)
Flight time calculation according to fuel level
Timers & Limits
4× engine hours tracking (moto hours)
Total timer with initial time setting option
Total timer lock via code (code block)
Maximum limits for temperature, RPM and fuel consumption
Reset of all timers
Technical Parameters
Input Voltage: 5-20 V
Dimensions of the visualization module: 60 x 37 x 15 mm
Dimensions of the measurement module: 60 x 28 x 11 mm
Weight: 100 g
Dimensions of the battery box: 63 x 48 x 15 mm
Weight: 70 g
Length of the data cable between the visualization and measurement module: 130 cm
Technical Parameters
Input Voltage: 5-20 V
Dimensions of the visualization module: 60 x 37 x 15 mm
Dimensions of the measurement module: 60 x 28 x 11 mm
Weight: 100 g
Dimensions of the battery box: 63 x 48 x 15 mm
Weight: 70 g
Length of the data cable between the visualization and measurement module: 130 cm
Safety Alarms
Engine temperature alarms (overheating)
Fuel level alarms
Fuel flow alarms (fuel leak detection)
RPM limit alarms
On-board and battery voltage alarms (min / max, voltage drop)
Safety Alarms
Engine temperature alarms (overheating)
Fuel level alarms
Fuel flow alarms (fuel leak detection)
RPM limit alarms
On-board and battery voltage alarms (min / max, voltage drop)
Configuration options

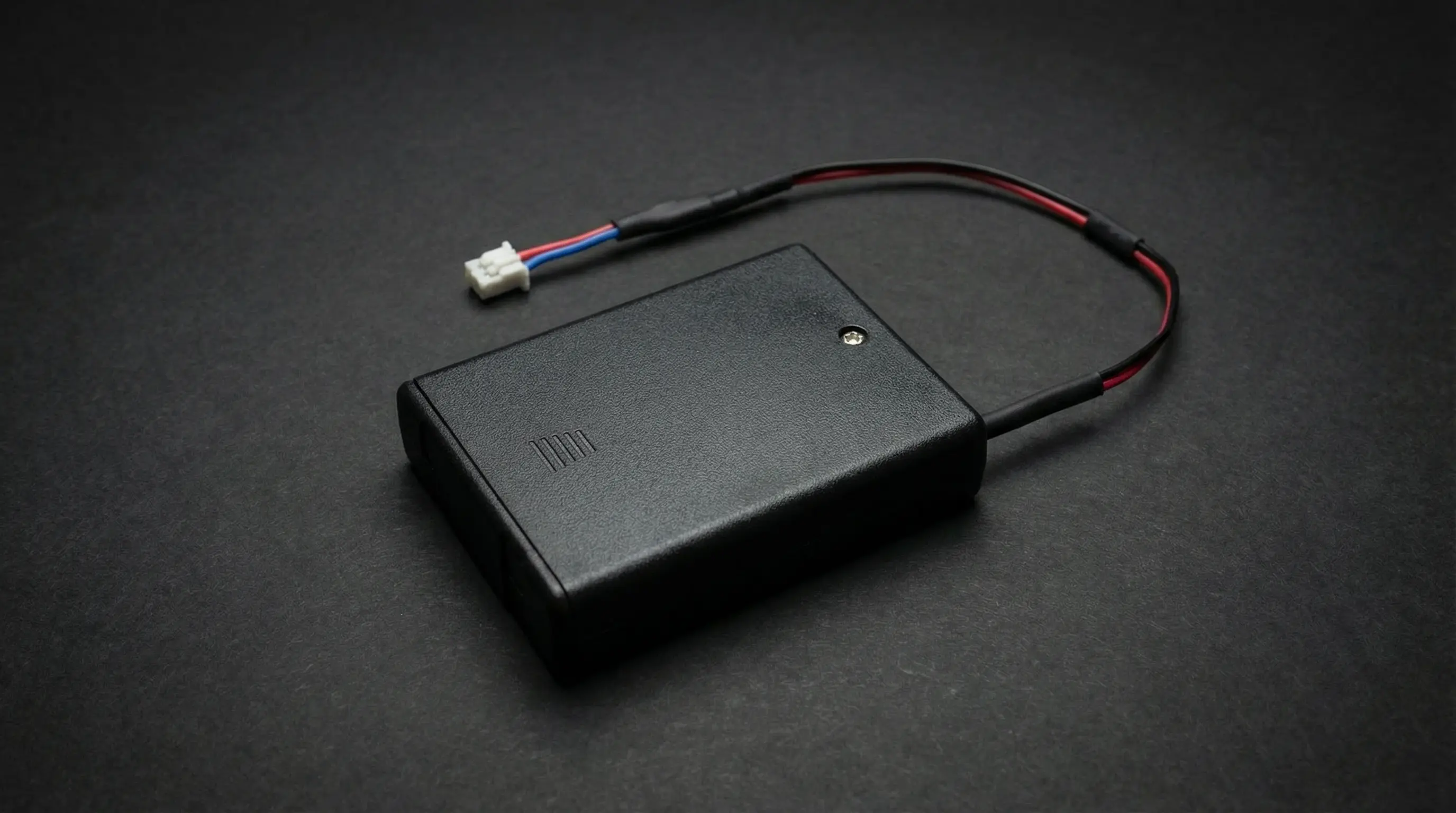

The PPG Meter can be supplied with or without a dedicated Battery Box, depending on the electrical starter configuration and installation requirements.
It is powered by standart AAA batteries.
Configuration options
The PPG Meter can be supplied with or without a dedicated Battery Box, depending on the electrical starter configuration and installation requirements.
It is powered by standart AAA batteries.
