FLY Meter
An electronic monitoring and measurement system designed for real-time tracking of engine and system parameters in aviation. The system provides clear, continuous operational data for use in demanding flight environments.
System architecture

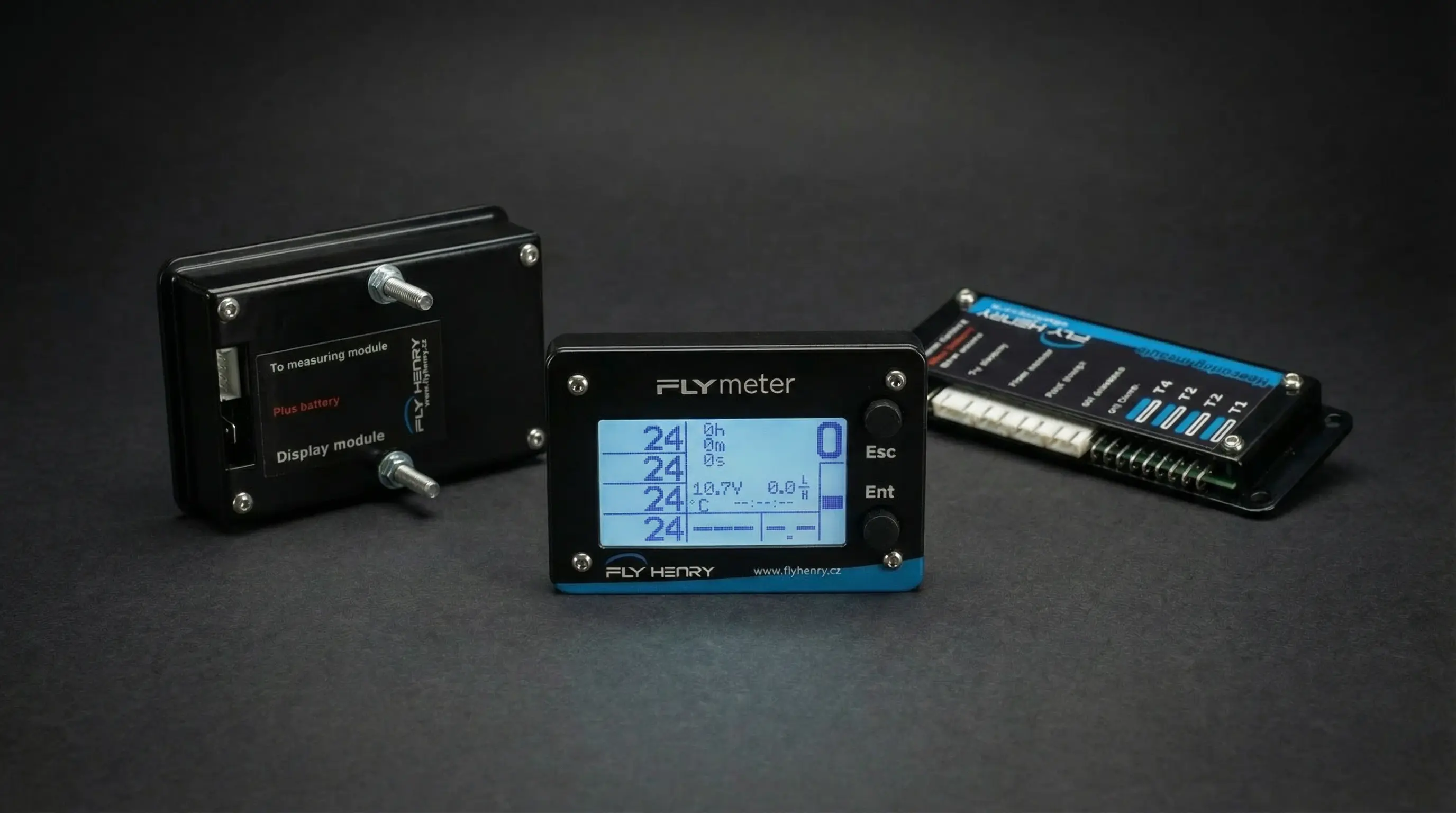

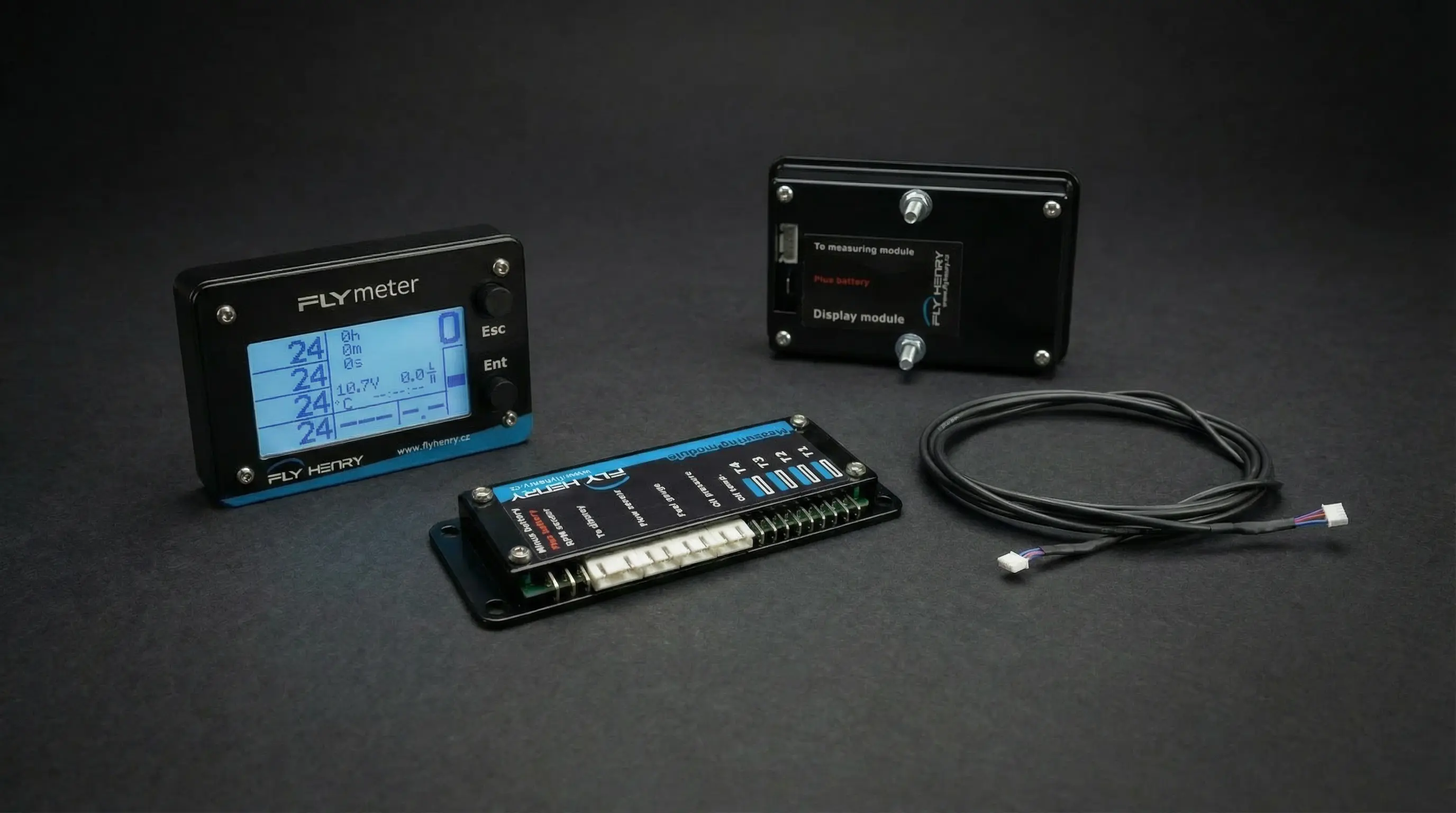

The system consists of a measurement module installed close to the engine and a visualization module placed within the pilot’s visual field. All sensors are connected to the measurement module, while the display unit presents live operational data. The modules are interconnected via a data cable with configurable length.
System architecture
The system consists of a measurement module installed close to the engine and a visualization module placed within the pilot’s visual field. All sensors are connected to the measurement module, while the display unit presents live operational data. The modules are interconnected via a data cable with configurable length.
Detailed functions, specifications and diagrams are available in our documentation.
Detailed functions, specifications and diagrams are available in our documentation.
Detailed functions, specifications and diagrams are available in our documentation.
Functions
Engine & System Monitoring
4x temperature monitoring 0 - 1000°C, CHT or EGT
1x temperature monitoring -20 - 125°C
RPM measurement
Oil and Fuel pressure monitoring
On-board voltage measurement
Fuel Management Monitoring
Fuel level and flow monitoring
Actual and average fuel consumption calculation
Remaining flight time estimation based on fuel data
Timers & Maintenance Tracking
Engine hours tracking
Flight time tracking
Multiple independent timers
Service interval monitoring
Functions
Engine & System Monitoring
4x temperature monitoring 0 - 1000°C, CHT or EGT
1x temperature monitoring -20 - 125°C
RPM measurement
Oil and Fuel pressure monitoring
On-board voltage measurement
Fuel Management Monitoring
Fuel level and flow monitoring
Actual and average fuel consumption calculation
Remaining flight time estimation based on fuel data
Timers & Maintenance Tracking
Engine hours tracking
Flight time tracking
Multiple independent timers
Service interval monitoring
Technical Parameters
Input Voltage: 7-20V

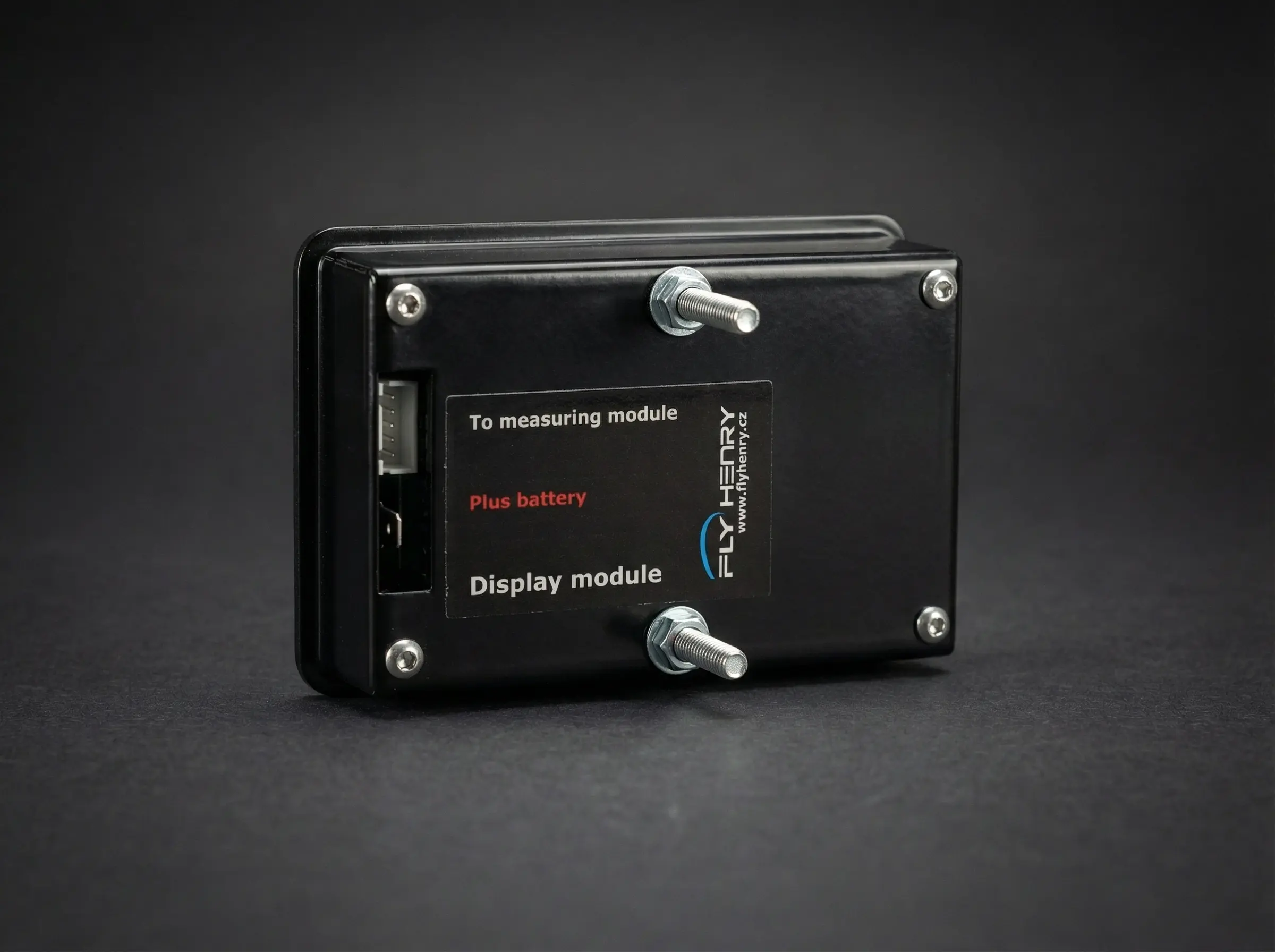

Visualization module
Dimensions of the front panel: 98 x 64 mm
Dimensions of the aperture in the panel: 93 x 59 mm
Weight: 150g

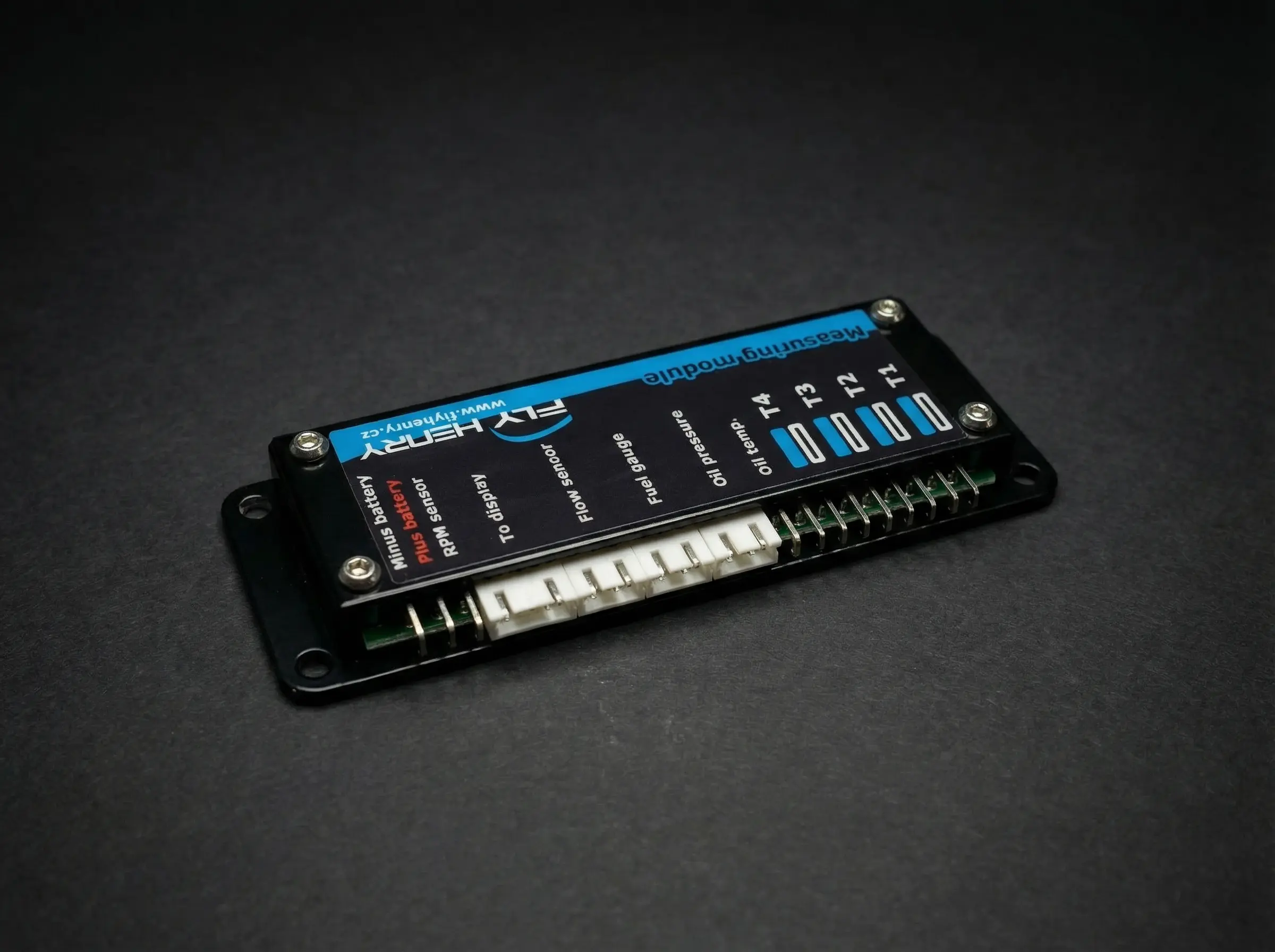

Measurement module
Base dimensions: 124 x 40 x 20 mm
Weight: 100g
Technical Parameters
Input Voltage: 7-20V
Visualization module
Dimensions of the front panel: 98 x 64 mm
Dimensions of the aperture in the panel: 93 x 59 mm
Weight: 150g
Measurement module
Base dimensions: 124 x 40 x 20 mm
Weight: 100g
Safety Alarms
Configurable alarms notify the pilot of abnormal operating conditions and limit violations and problems.
Fuel level and fuel flow alarms
On-board voltage alarms
Temperature alarms (minimum / maximum limits)
Oil and fuel pressure alarms
RPM limit alarms
Safety Alarms
Configurable alarms notify the pilot of abnormal operating conditions and limit violations and problems.
Fuel level and fuel flow alarms
On-board voltage alarms
Temperature alarms (minimum / maximum limits)
Oil and fuel pressure alarms
RPM limit alarms
